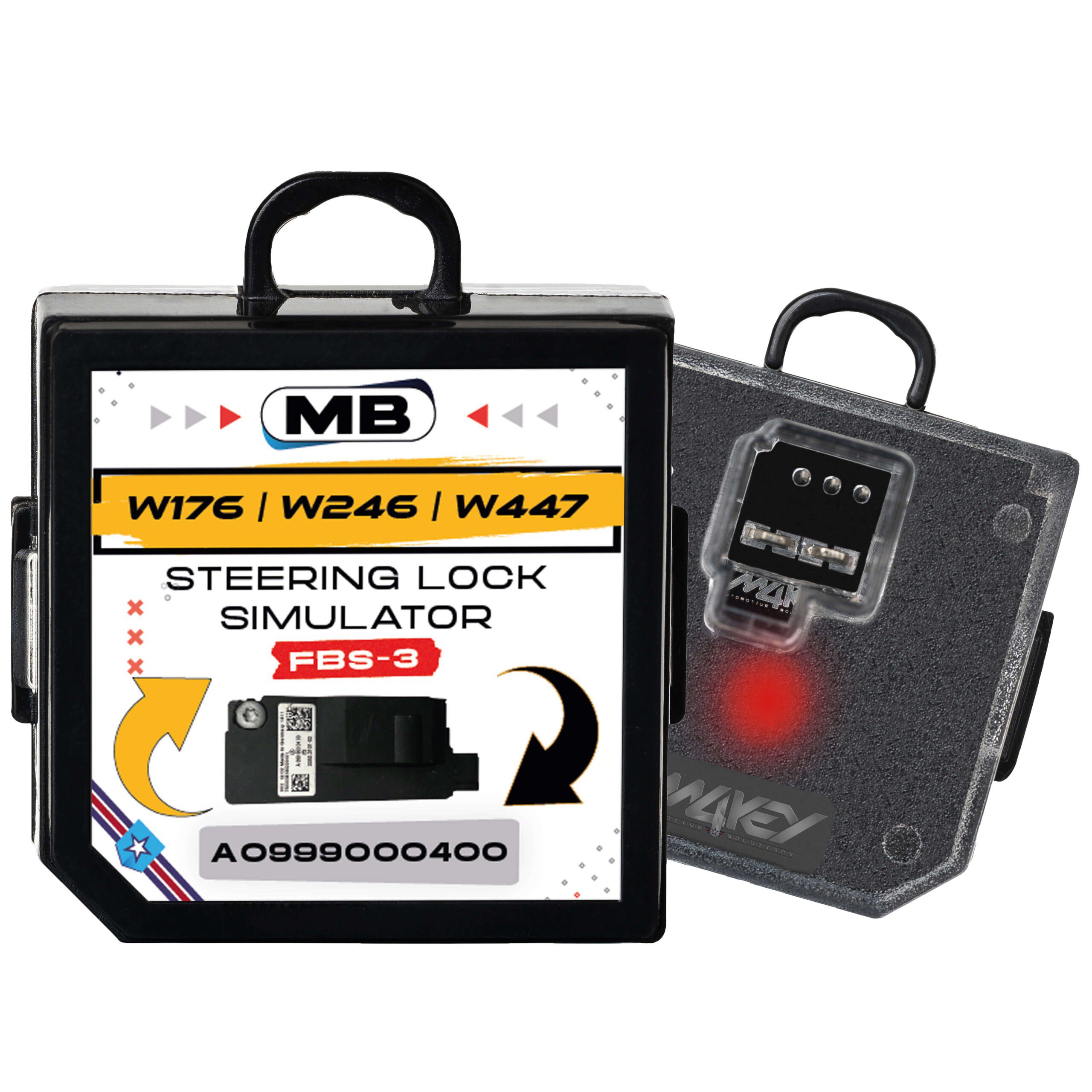

Mercedes W176 | W246 | W447 ELV ESL Steering Lock Emulator Simulator

Mercedes Benz Steering Lock Emulator

This Mercedes-Benz Steering Lock Emulator addresses one of the most common issues in the MB Benz starting system: the steering lock. Typically, replacing and reprogramming the steering lock is a costly and time-intensive process, but this ELV emulator provides a more efficient and economical solution. It allows for easy programming and reprogramming across various vehicles, significantly simplifying the job.

Supported Models: W176, W246, W447, including FBS3 systems.

Main Features:

• Simple and user-friendly installation
• Compatible with most MB key programming devices
• Reprogrammable multiple times for use on different vehicles
• Integrated LED light indicator for quick status identification
• Enhanced durability and safety over traditional ELV repairs, eliminating common ESL issues

Instructions for Use:

1. Disconnect the ELV wire from the vehicle?s original steering lock unit.
2. If the steering lock is in “lock” mode, remove the lock from the vehicle.
3. Retrieve the Mercedes EIS password using a key programmer.
4. Program the emulator using an MB-compatible key programming device.
5. Connect the MB ELV emulator to the car, insert the key, and start the vehicle.

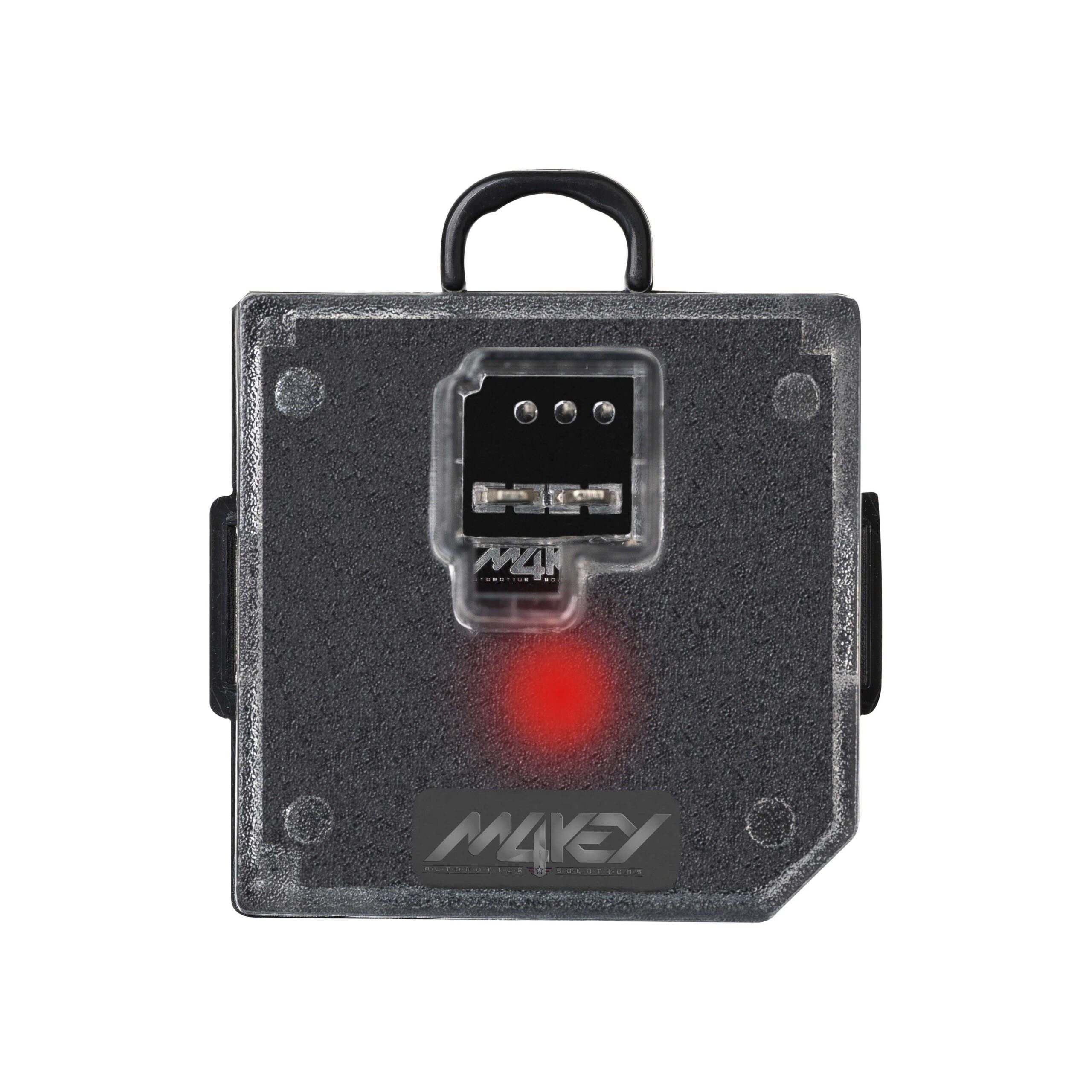

LED Indicator Behavior:

• Green Light: Successful connection and programming, ready to start.
• Red Light: Indicates a mismatch in key or an issue with the EIS/EZS system.
• No Light: Check the power supply and cable connections.

Supported EIS/EZS Models:

• W176 EIS
• W246 EIS
• W447 EIS with Steering Lock (FBS3)

Supported Key Programming Devices:

Compatible with AVDI, Xhorse VVDI MB BGA, CGDI MB, DIAGSPEED, Autel Auro, S?mon Touch, and many other programming devices.
