PSA Emergency Start / PSA Bypass Mini

PSA Emergency Start OBD Mini

The PSA Emergency Start OBD Mini is designed for Peugeot, Citro?n, and Lancia vehicles to enable emergency starting by bypassing the original immobilizer system. This device is compatible with models using Siemens, Johnson Controls, JCI, Valeo, and Continental BSI units. Note: It is not compatible with newer vehicles using Delphi BSI systems.

Supported BSI Modules

• Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00). EEPROM 95160
• Siemens 1L00M+95128/95256 CAN (BSI-S0X-00). EEPROM 95128/95256
• Continental SC667050+95256 CAN (BSI-Q0X-00). EEPROM 95256
• Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00). EEPROM 95128/25128
• Valeo 2M48H+24C128 CAN (BSIEV-X0X-00). EEPROM 24C128
• Valeo SC667152+95256 CAN (BSI-N0X-00). EEPROM 95256
• Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X). EEPROM 95128
• Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X). EEPROM 95128
• Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX). EEPROM 95128

Supported Vehicles

This device supports various Peugeot, Citro?n, and Lancia models equipped with mechanical keys and original parts. Below is a selection of compatible models:

Peugeot Models:

• 1007, 206 (1.4 HDI, 2.0 HDI), 207, 306 (2.0 HDI), 307 (2.0 HDI), 208 (2012+), 2008 (2013+), 301 (2012+), 308, 3008, 508, 5008, 406 (2.0 HDI), 407, 607 (2006+), 807 (2006+), Expert II, Partner (2.0 HDI), Ranch (2.0 HDI), Partner (2008+)

Citro?n Models:

• C2, C3 (1.4 HDI), C3 (2006+), C3 II, DS3, C4, C4 Picasso, C4 II, DS4, C5 (2.0 HDI), C5 (2004+), C5 II (2007+), DS5, C6, C8 (2007+), Jumpy II, Xsara (2.0 HDI), Xsara Picasso (2.0 HDI), Saxo (1.4 HDI), Berlingo (2.0 HDI), Berlingo (2008+), Xantia (2.0 HDI), C-Elysee (2012+)

Lancia Models:

• Phedra (2008+)

Usage Requirements

• Vehicle must be equipped with a mechanical key.
• All parts must be original.
• The device is intended for use only when the key is lost.

How to Use the PSA Emergency Start OBD Mini

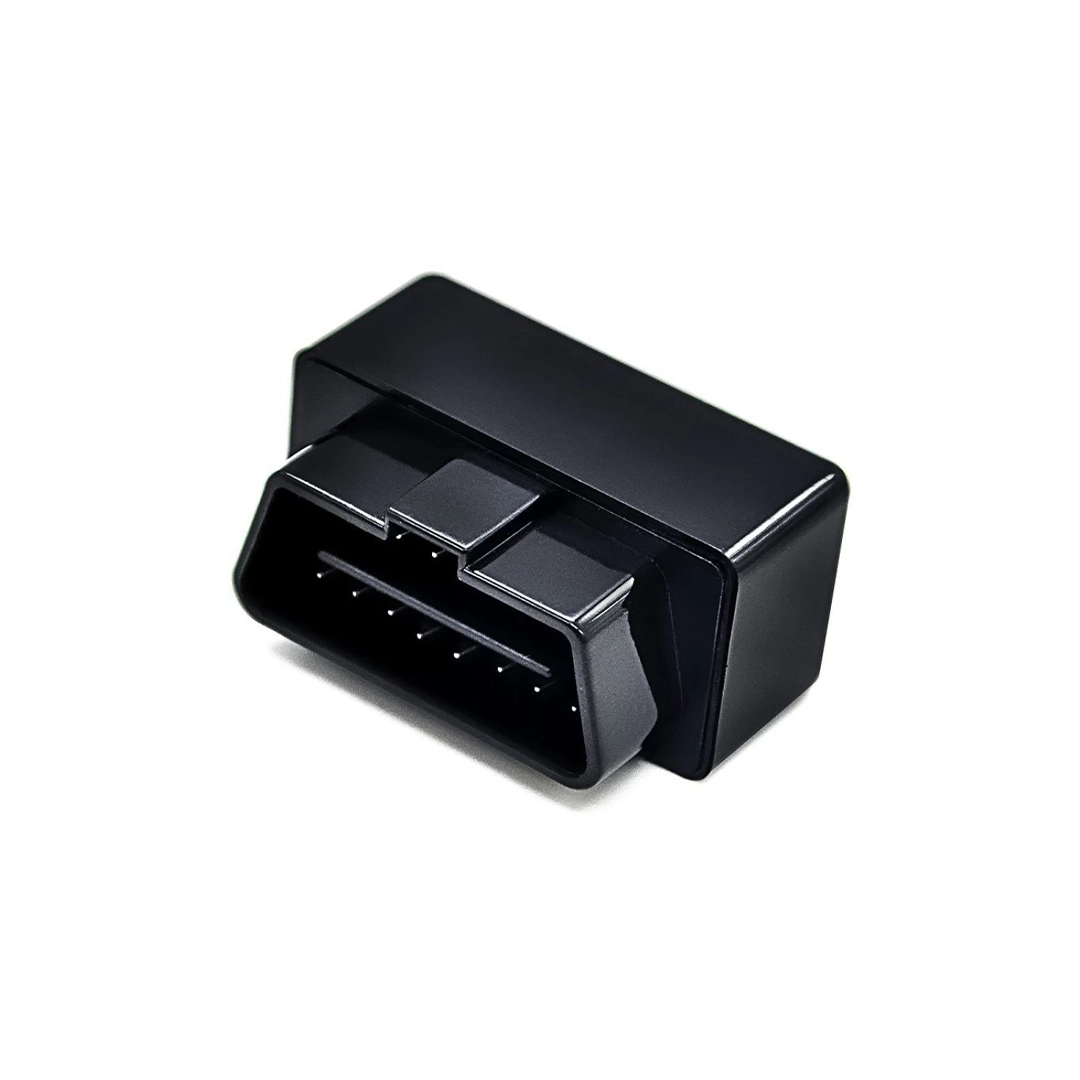

1. Insert the device into the OBD2 socket of the car.
2. The red LED (Power) will light up, indicating that the device is powered.
3. The device will automatically enter PIN code reading mode for 10 seconds.
4. After 10 seconds, the green LED (Code) will blink rapidly, indicating the PIN code has been read.
5. When you turn the ignition ON, the green LED will remain steady, signaling that the car is in emergency start mode and ready to start.
6. If the car doesn?t start normally, repeat the process from the beginning.

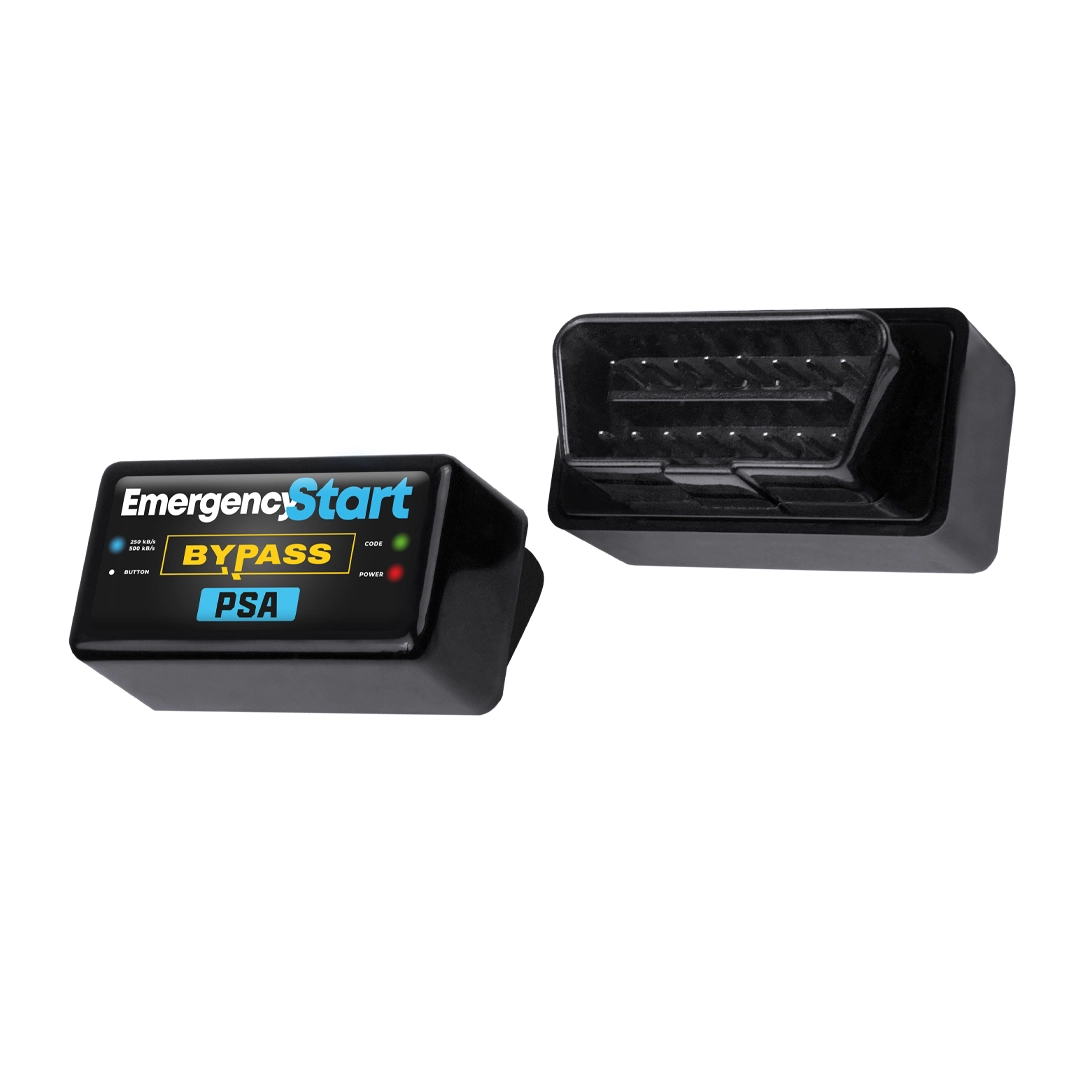

PSA Emergency Start OBD Mini LED and Button Functions

• Red LED: Power
• Green LED: Code
• Blue LED: CAN-speed mode (500kB/s or 250kB/s)

Important Notes

This device is intended for official use only. Misuse of this product for illegal purposes is the sole responsibility of the user.

Attention: When the green LED (Code) starts blinking, the PIN code has been successfully read. If the car fails to start after turning the ignition on, press the button to switch the CAN-speed mode from 500kB/s to 250kB/s (indicated by the blue LED).
