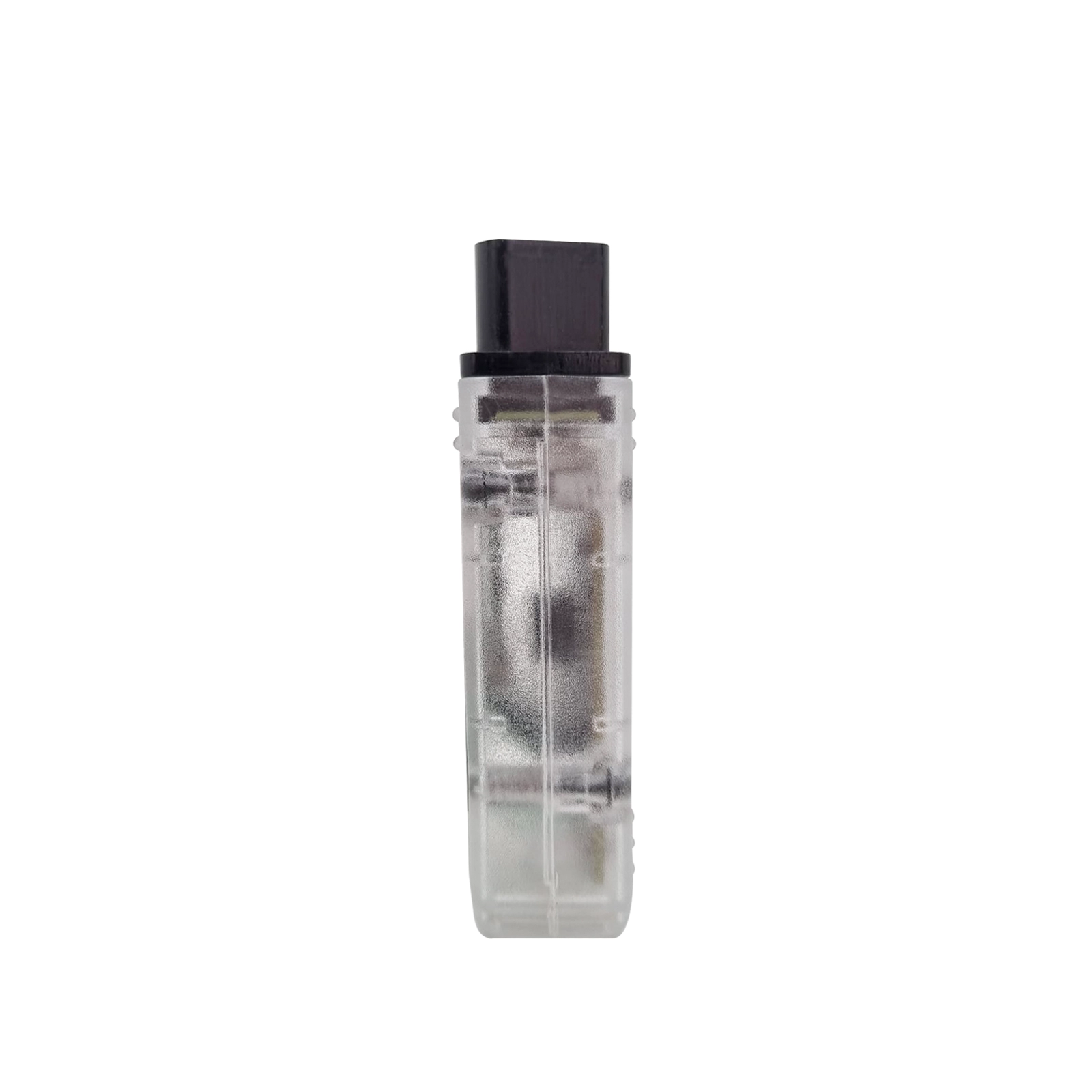

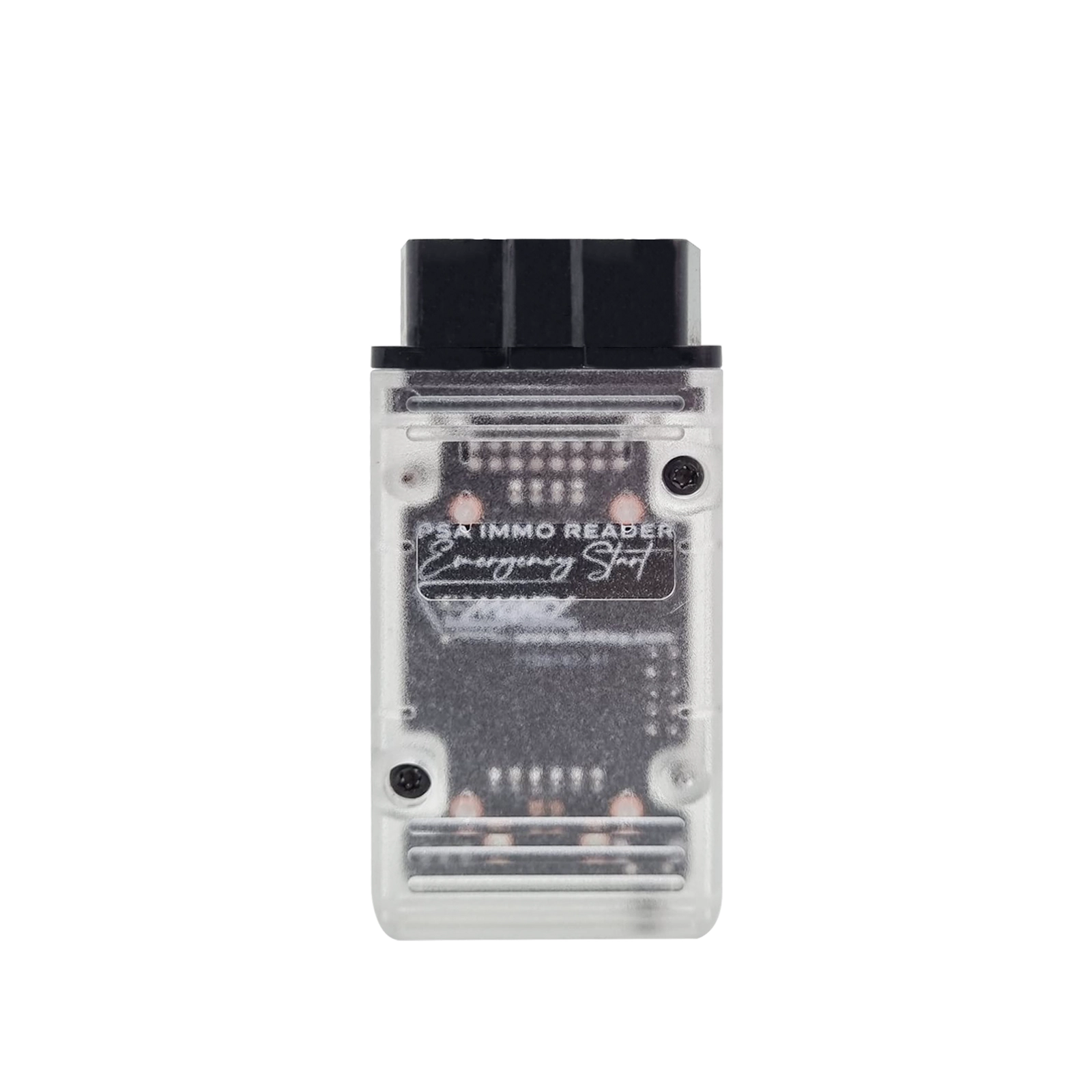

PSA Immo reading device emergency start 3 in 1 PSA Fiat BMW

Key Features and Requirements

1. Supported BSI Modules:The device supports various Siemens, Johnson Controls, Valeo, and Continental BSI modules with specified EEPROM configurations:
   • Siemens D76F0018+95160 KLINE, EEPROM 95160
   • Siemens 1L00M+95128/95256 CAN, EEPROM 95128/95256
   • Continental SC667050+95256 CAN, EEPROM 95256
   • Valeo modules and Johnson Controls modules as specified above.
2. Supported Vehicle Models:This device is compatible with various Peugeot, Citro?n, and Lancia models with mechanical keys, including:
   • Peugeot models like the 1007, 206, 207, 307 (2.0 HDI), 208, 301, 3008, 508, 407, and Partner.
   • Citro?n models such as the C2, C3, DS3, C4 Picasso, C5, Jumpy II, Xsara, Berlingo, and C-Elysee.
   • Lancia: Phedra (2008+).
3. Usage Conditions:
   • The vehicle must have a mechanical key.
   • All parts must be original.
   • The device is intended only for emergency use when the key is lost.

Instructions for Use

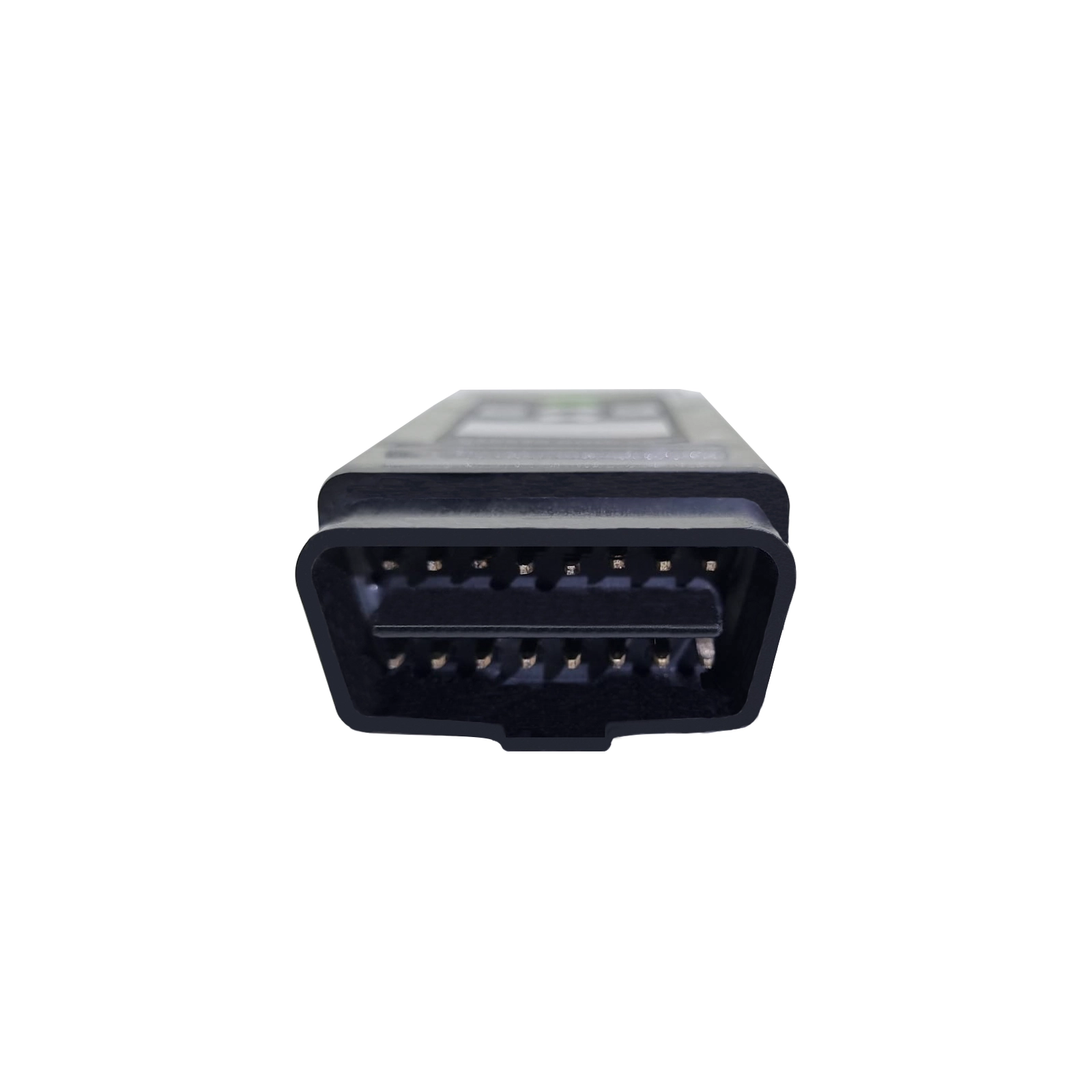

1. Connect Device: Insert the PSA Emergency Start OBD Mini into the car’s OBD2 socket.
2. LED Indicators:
   • Red LED: Power on.
   • Green LED: Blinks rapidly during PIN code reading (initial 10 seconds).
3. Start Procedure:After the green LED blinks, turn on the ignition. Once the green LED is steady, the car is ready to start.
4. Retry if Necessary: If the car does not start, retry the process from the beginning.
5. CAN-Speed Adjustment:In case of issues, switch the CAN speed by pressing the button on the device to toggle between 500kB/s and 250kB/s, as indicated by the blue LED.

Important Notes

This device is sold for official, lawful purposes only. Unauthorized or illegal use is strictly the user?s responsibility.
