2018+ FCA Security Gateway Module Bypass

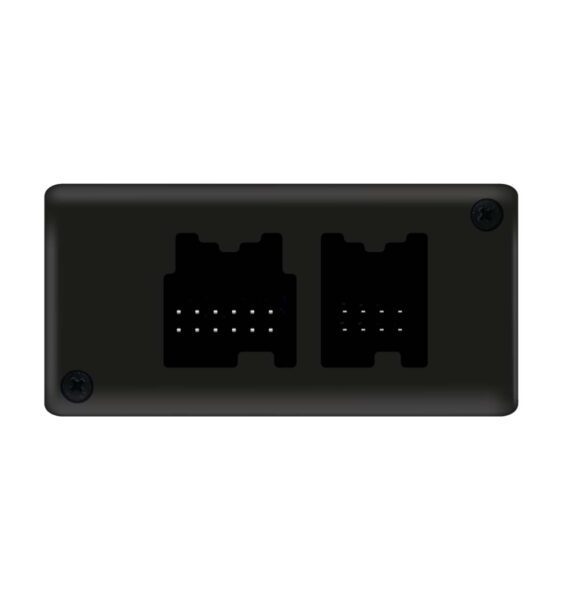

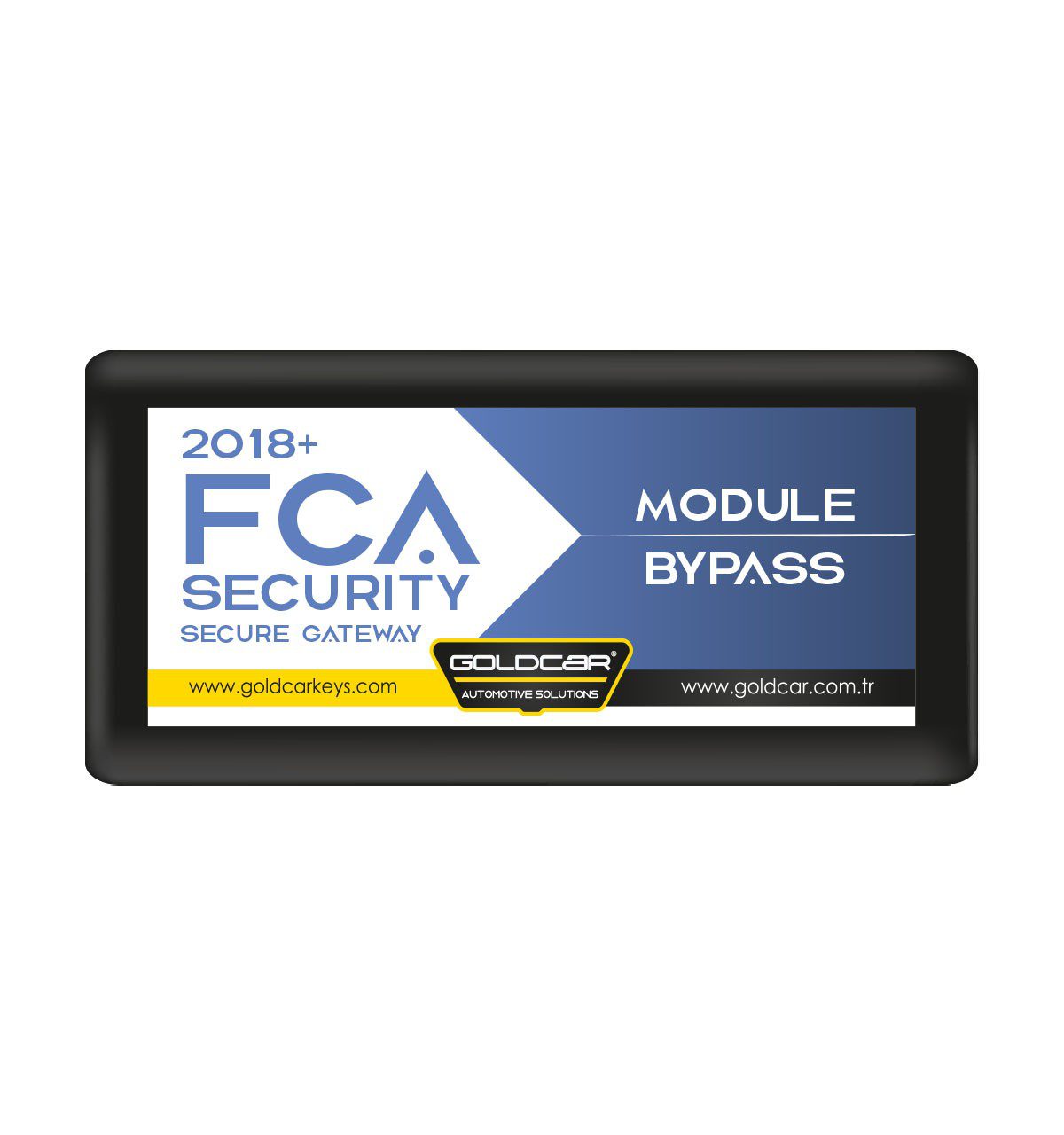

FCA Secure Gateway Module Bypass Box

Beginning with model years 2018 and above, Chrysler, Dodge, Jeep, RAM, and Fiat vehicles have been equipped with a security gateway module. This module aims to prevent CAN bus hacking over the 3G or LTE network. The FCA Secure Gateway Module Bypass Box, developed by Infotainment.com alongside OBD Genie, temporarily bypasses this security feature to enable specific vehicle features as needed.

Vehicle Compatibility

• 2018+ Alfa Romeo Giulia
• 2018+ Alfa Romeo Stelvio
• 2018-2021 Chrysler 300
• 2018-2021 Chrysler Pacifica
• 2018-2021 Dodge Charger
• 2018-2021 Dodge Challenger
• 2018-2021 Dodge Durango
• 2018-2021 Dodge Journey
• 2018+ Fiat 500L
• 2018+ Fiat 500X
• 2018-2021 Jeep Cherokee
• 2018-2021 Jeep Compass
• 2018-2021 Jeep Grand Cherokee
• 2019+ Jeep Grand Commander
• 2018+ Jeep Renegade
• 2018-2021 Jeep Wrangler JL
• 2020-2021 Jeep Gladiator
• 2018-2021 Ram 1500 & Heavy Duty 2500/3500
• 2018+ Ram Promaster City
• 2020+ Ram Promaster (Full-Size)

Installation Instructions

To install the bypass device:

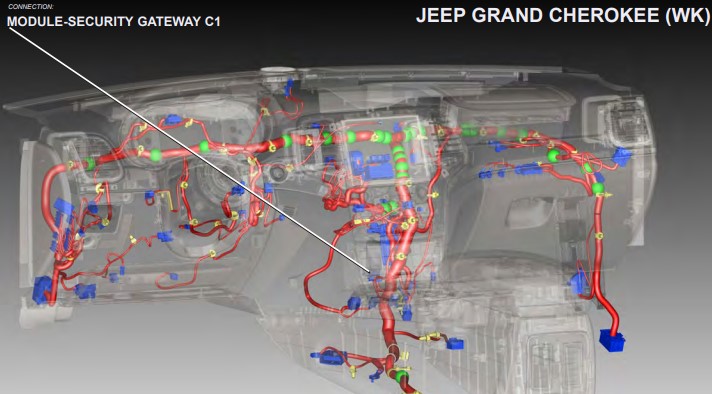

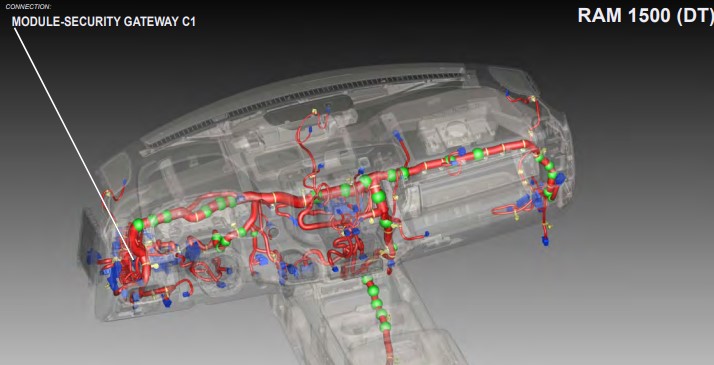

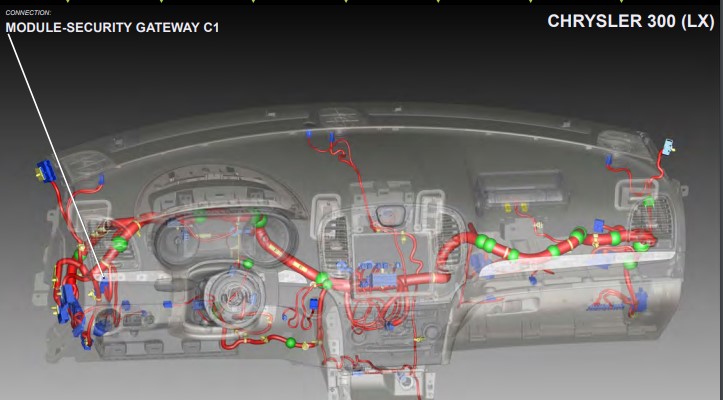

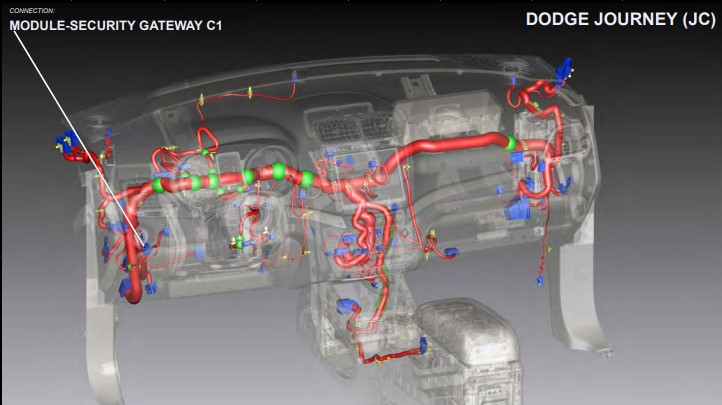

1. Locate your vehicle?s security gateway module.
2. Disconnect the two plugs from the module.
3. Connect these plugs into the bypass device.
4. Run the OBD Genie programmer. Wait for the green LED light to confirm successful feature activation.
5. Once completed, remove the bypass device and reconnect the security gateway module to its original configuration.

Important Information

This device should only be connected temporarily during programming with the OBD Genie dongle. After programming is completed, the security gateway module should be reconnected to ensure proper security for vehicle operations.

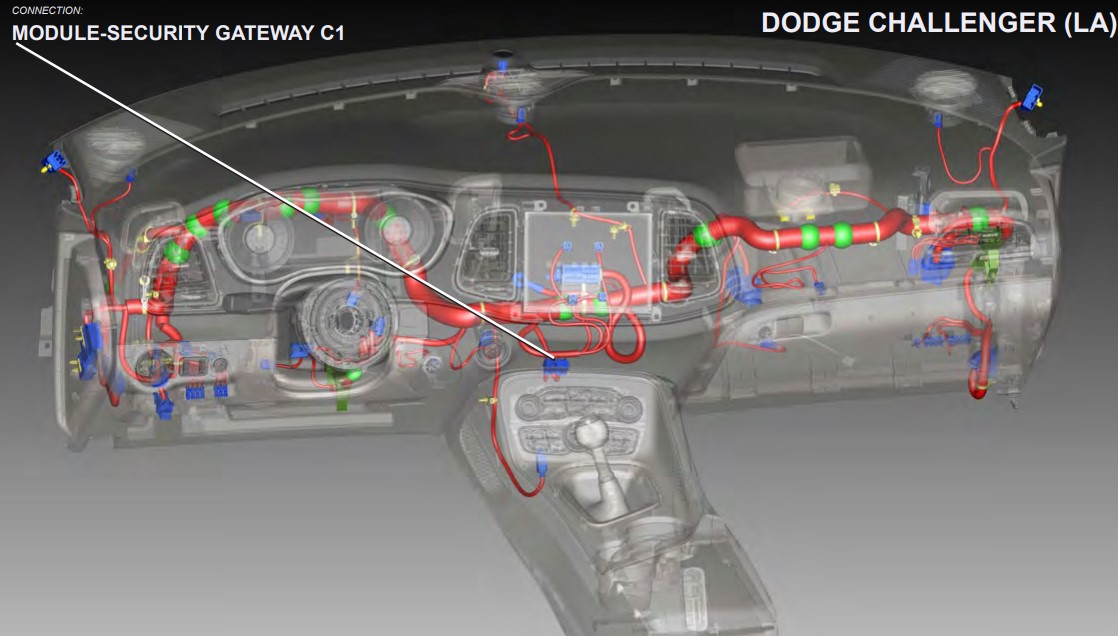

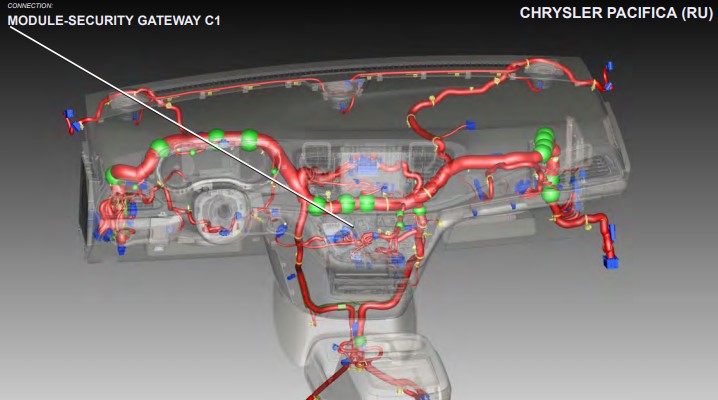

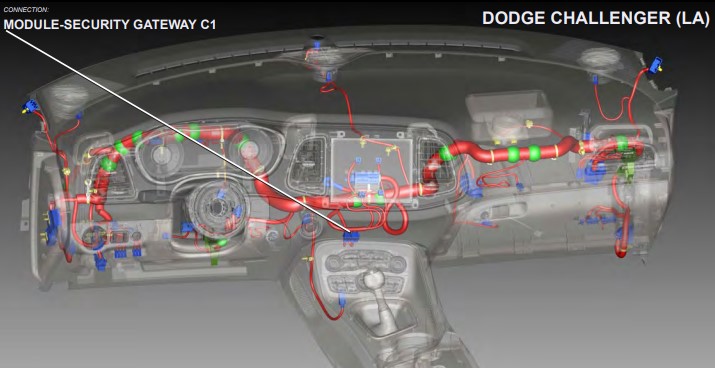

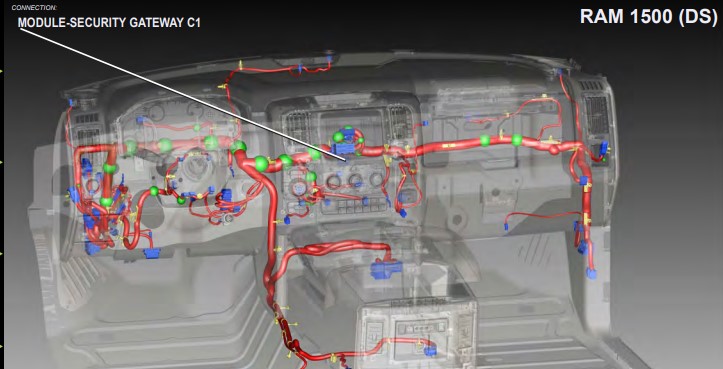

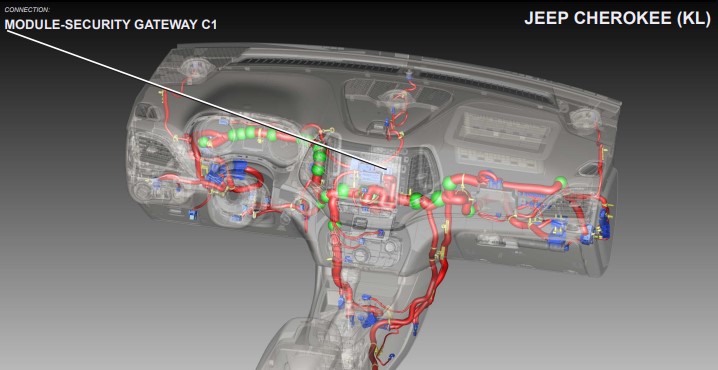

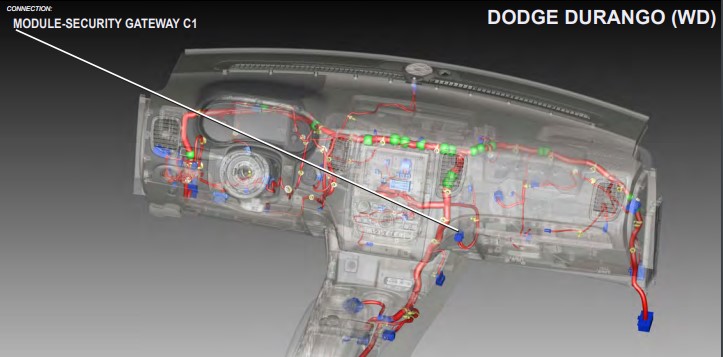

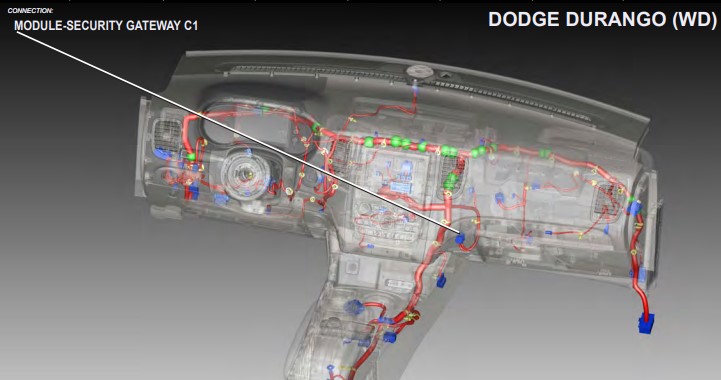

Note: For specific vehicle gateway module locations, refer to the vehicle compatibility list above and consult your vehicle?s service manual if needed.
