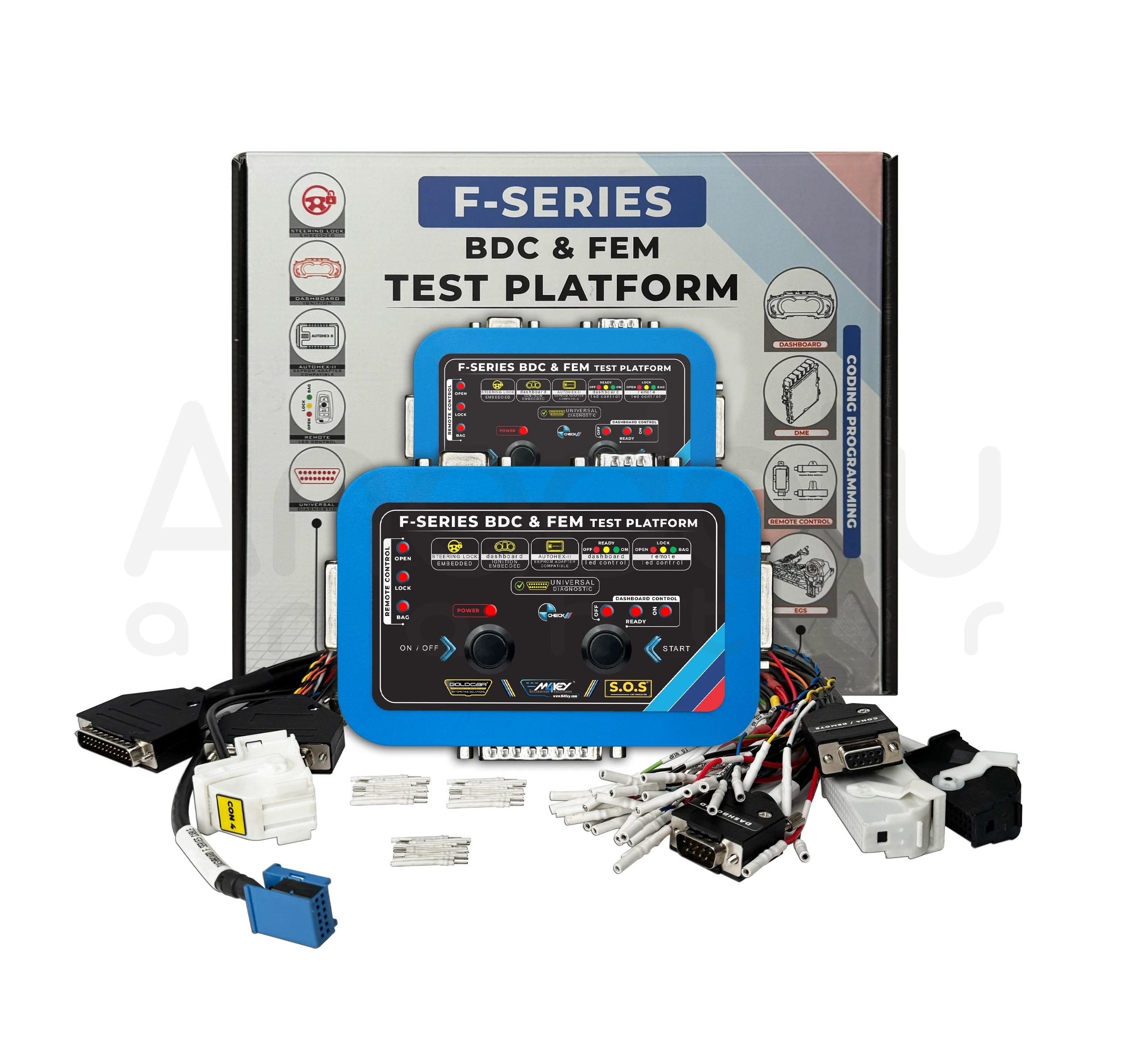

F-Series BDC & FEM Test Platform ? Professional Bench Testing and Programming Solution
The BMW F-Series FEM / BDC Test Platform is a professional bench solution developed for testing, coding, programming, and complete diagnostics of FEM and BDC modules used in BMW and Mini Cooper vehicles.
With this device, all operations can be performed safely, quickly, and stably on the bench without the need to constantly remove and install modules from the vehicle. Compared to in-vehicle operations, it significantly reduces working time, increases safety, and minimizes the risk of connection errors. If you work professionally in BMW FEM key programming, coding, and electronic diagnostics, this test platform is an indispensable piece of equipment for every professional workshop.
Full Functional Description

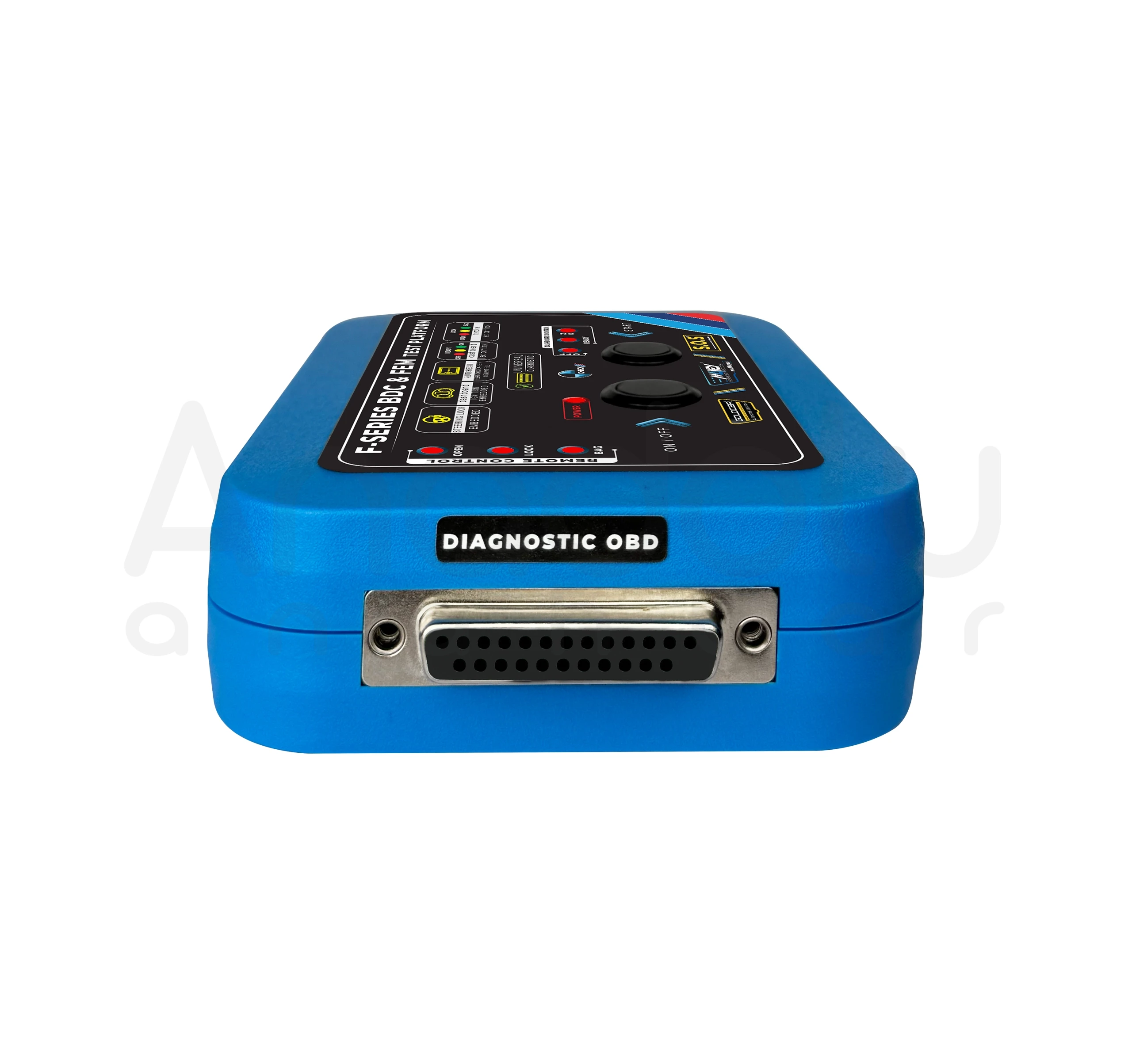

With the F-Series FEM / BDC Test Platform, you can perform comprehensive bench diagnostic tests. The platform allows the simultaneous connection and testing of BDC / FEM + Dashboard + ECU + EGS modules. This enables real-time monitoring, coding, and programming with maximum stability. The built-in universal OBD interface ensures full compatibility with all professional diagnostic and programming devices operating via OBD.
Supported Devices
- Autohex II
- BMW ICOM
- VVDI 2
- Keytool Plus
- Autel IM508 / IM608
- Abrites
- Topdon
- Launch
- And all other OBD-compatible professional devices
Supported Modules
- FEM
- BDC
- Dashboard
- Antenna Receiver
- EGS (Transmission Control Unit)
- ECU (Engine Control Unit)
Technical Features and Advantages
- 5 independent high-current connection ports
- Dashboard Test Button: Provides direct activation and testing of the dashboard without FEM / BDC connection
- Built-in Steering Lock Emulator: For complete bench testing of locked FEM / BDC systems
- Antenna receiver LED indicators + buzzer feedback for monitoring key?vehicle communication
- Status LEDs for real-time monitoring of FEM / BDC system status without connecting a dashboard
Special Integration with Autohex II
The F-Series FEM / BDC Test Platform is specifically designed for seamless integration with Autohex II.
- Direct DP25 port connection
- No additional OBD cable required

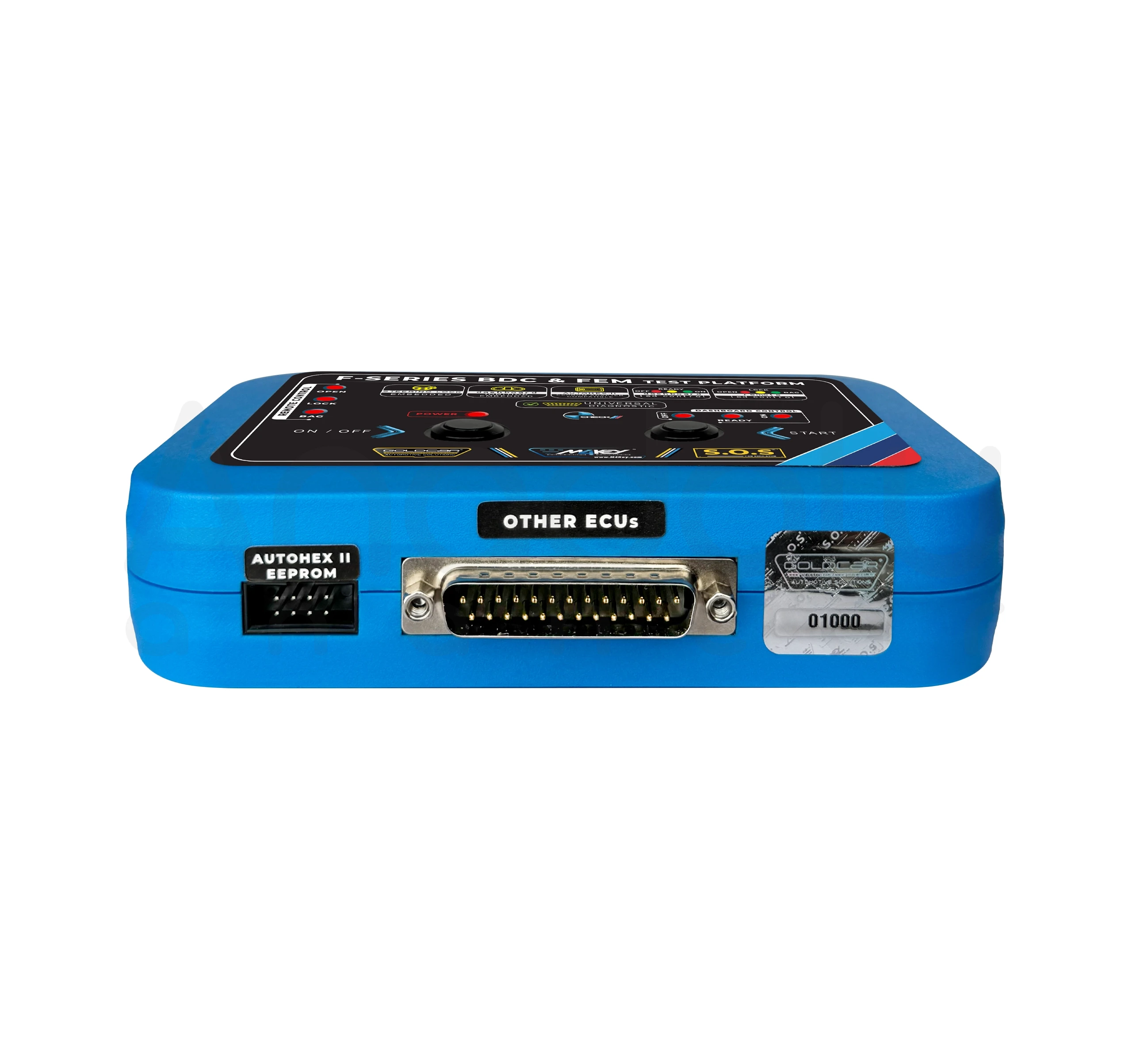

- Special EEPROM adapter output in bench mode
- ISN reading and advanced ECU operations via ECU output
- Pin configurations are fully compatible with Autohex II hardware architecture
Vehicle Compatibility
Supports all BMW and Mini Cooper F-Series vehicles equipped with FEM and BDC systems.
