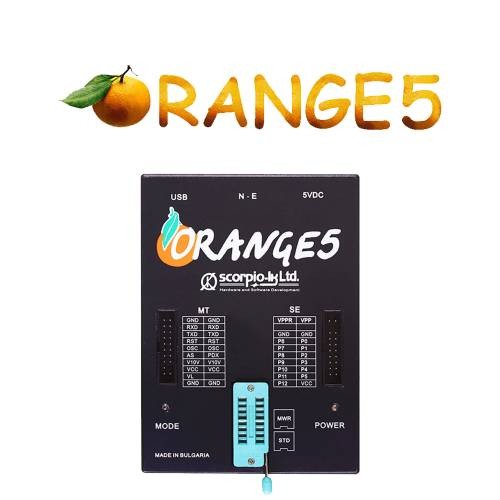

Orange5 Software
ImmoHPX Installation Guide
Personal Backup Archive
Download and extract your personal archive by constructing a link from the template:
https://www.scorpio-lk.com/immov10/XXXX-XXXX.rar
Where XXXX-XXXX represents the last nine symbols of your personal Orange-5 serial number.
Password of the archive is the device's full serial number.
Example:
If Orange-5 serial number is: 1111-2222-3333-4444-5555-6666-7777-8D1A
Then the link is: https://www.scorpio-lk.com/immov10/7777-8D1A.rar
Within the extracted folder, you will find two items:
- File: 3-O5Immo.cfg
- Folder: O5IMMO
Installation Procedure
- Open the Orange-5 base software directory (where
orange.exeis located) and paste 3-O5Immo.cfg within it. - Then open the folder HPL and paste the folder O5IMMO from the archive into it.
After that, ImmoHPX functions can be accessed from the Orange-5 software:
- Select Type -> Configuration -> 3-O5Immo
| Code | Part Number |
|---|---|
| *A20T | MC68HC705S3 |
| *A38P | MC68HC11A8 |
| *A46E | MC68705R3 |
| *A49N | MC68HC11A8 |
| *A58P | MC68HC05C8A |
| *A75H | MC68HC811A2 |
| *B16B | MC68HC805C4 |
| *B19C | MC68HC811E2 |
| *B35F | MC68HC11A0 |
| *B36T | MC68HC805B6 |
| *B46E | MC68HC11A8 |
| *B60R | MC68HC11E9 |
| *B65H | MC68HC11A8 |
| *B76T | MC68HC11A8 ?? |
| *B77M | MC68HC11F1 |
| *B83T | MC68HC05B8 |
| *B84N | MC68HC11A1 |
| *B84T | MC68HC11A1 |
| *B91T | MC68HC05B6 |
| *B95T | MC68HC11A1 or A8 |
| *B96D | MC68HC11A8 |
| *B96T | MC68HC05C8 ?? |
| *C10C | MC68HC05M4 |
| *C11W | MC68HC11A1 |
| *C12R | MC68882FN20A |
| *C15J | MC68HC11F1 |
| *C13W | MC68HC11L6 |
| *C14H | MC68HC05B6 |
| *C16J | MC68HC811E2 |
| *C16W | MC68HC705C8 |
| *C17F | MC68HC11D3 ?? |
| *C25T | MC68HC05E1 |
| *C27B | MC68HC11E1 |
| *C27T | MC68HC05P8 |
| *C28M | MC68HC11G5 |
| *C28W | MC68HC05P9 |
| *C35N | MC68HC05B16 ?? |
| *C40H | MC68HC05J1 |
| *C45A | XC68HC711D3 |
| *C46A | MC68HC811A8 |
| *C47M | MC68HC711E9 |
| *C61A | MC68HC05P* ?? |
| 5C71T | MC68EC000 |
| *C75G | MC68HC05P7 |
| 3C83J | MC68HC05B4 |
| *C83W | MC68HC11E9 |
| *C85W | XC68HC711L6 |
| *C90T | MC68HC05P8 |
| *C91F | MC68HC11E1/E9 |
| *C92K | MC68HC05C12A |
| *C93W | MC68HC711K4 |
| *C94R | MC68HC11F1 |
| *C95K | MC68HC05E0 |
| *C96K | MC68HC11E9 |
| *C96N | MC68HC11A1/A8 |
| *C99K | MC68HC05B4 |
| *D10J | MC68HC705B5 |
| *D12A | MC68B09EP |
| *D15G | MC68HC05E1 |
| *D17E | MC68HC05T3 |
| *D18E | MC68HC05P4 ?? |
| *D20J | MC68HC05B16 |
| *D25A | MC68HC05P4 |
| *D26E | MC68HC11A1 |
| *D28J | MC68HC705B16 |
| *D28N | MC68HC05E6 ? |
| *D28T | MC68HC705F6B |
| *D32N | MC68HC05E1, MC68HC705E1 |
| *D33J | MC68HC05B6/B8 |
| *D33N | MC68HC705P9 |
| *D35E | MC68HC11E9 |
| *D37R | MC68HC05C12A |
| *D40J | MC68HC705B32 or X32 |
| *D41V | XC68HC705BE12 |
| *D43F | MC68HC11K4 |
| *D43R | MC68HC711E20 |
| *D45R | MC68HC11ED0 |
| *D46J | MC68HC11EA9 |
| *D47J | MC68HC11ED0 |
| *D47N | MC68HC11E9 |
| *D47T | MC68HC705P9 |
| *D49N | MC68HC05B6 ?? |
| *D53K | MC68HC11L6 |
| *D55N | MC68HC05T2 |
| *D56J | MC68HC11E20 |
| *D59J | MC68HC11A0 |
| *D60A | MC68HC05L28 |
| *D61J | MC68HC705C4 ?? |
| *D61N | MC68HC11F1 ?? |
| *D65J | MC68HC05B6 |
| *D66H | MC68HC705B16 |
| *D70H | MC68HC05T2 |
| *D71J | MC68HC705C8A |
| *D72H | MC68HC705T2 |
| *D74B | MC68HC05J1 |
| *D75G | MC68HC05P9 |
| *D75J | MC68HC05T2 |
| *D76J | MC68HC11E1 |
| *D77A | MC68HC05J2 |
| *D78J | MC68HC11A1 |
| *D80H | MC68HC05B16 |
| *D81F | MC68HC05C8A |
| *D81J | MC68HC11L6 |
| *D82J | MC68HC705T16 |
| *D85M | MC68HC05X32 |
| *D86J | MC68HC711E9 |
| *D87M | MC68HC05E6 |
| *D90T | MC68HC05P1 |
| *D92J | MC68HC705P6 |
| *D95E | MC68HC05E6 |
